Silicone-Coated Release Films
Spool-Wound Silicone-Coated Release Film — 24,000 m
Extended-length silicone-coated release film wound to 24,000 m on a single spool, developed to reduce roll-change frequency, production interruption and changeover-related waste.
At a glance
- Running length
- 24,000 m
- Equivalent conventional rolls
- 3 × 8,000 m
- Changeover reduction
- Up to 66% for an equivalent production length
- Winding
- Spool winding, pancake winding
- Width
- 19 – 55 mm standard, other widths custom
Overview
A 24,000 m PROASP spool holds three times the running length of a conventional 8,000 m roll. For an equivalent production length that can mean up to 66% fewer changeovers — three roll changes become one.
Every changeover costs more than the minute it takes to mount a new roll. It costs the run-up back to speed, the gum and LD-film lost at the splice, and the attention of an operator who was doing something else. Removing two changeovers out of every three removes those costs with them.
The spool format is supplied on both metallised and plain polyester base films, in spool winding and pancake winding, and slit to the widths your line runs. Because the format affects unwind diameter, tension and handling, the construction is confirmed against your line before supply rather than quoted from a fixed specification sheet.
Performance benefits
Three times the running length
24,000 m on a single spool against 8,000 m on a conventional roll — the same total length in one mount instead of three.
Up to 66% fewer changeovers
For an equivalent production length, two out of every three roll changes are removed from the shift.
Less changeover waste
Fewer splices means less residual gum and LD-film lost at each roll change.
Less machine downtime
Fewer stops and fewer run-ups back to line speed across a production day.
Spool or pancake winding
Wound to the format your unwind is built for, with edge guiding held through the wind so the reel runs true.
Confirmed against your line
Unwind, tension and handling are reviewed with your team before supply, so the format works on the equipment you actually run.
Available configurations
- Running length
- 24,000 m per spool
- 8,000 m conventional roll
- Winding
- Spool winding
- Pancake winding
- Base film
- Metallised polyester (MET)
- Plain polyester (PET)
- Width
- 19, 24, 30, 35, 40, 45, 50, 55 mm
- Other widths to your requirement
Applications
- High-volume label converting
- Adhesive tape manufacturing
- Continuous lamination lines
- Any pressure-sensitive line where changeover frequency limits output
How it works
01
Application review
Line speed, unwind type, tension control and current roll format are reviewed with your team.
02
Construction confirmation
Base film, release system and width are confirmed for the application rather than assumed.
03
Spool winding
The film is wound to 24,000 m in spool or pancake format, edge guided through the wind.
04
Trial and scale-up
A sample spool is run on your line before the format moves into regular supply.
The material in application
Production and application photography of this construction. Nothing here is a mock-up.

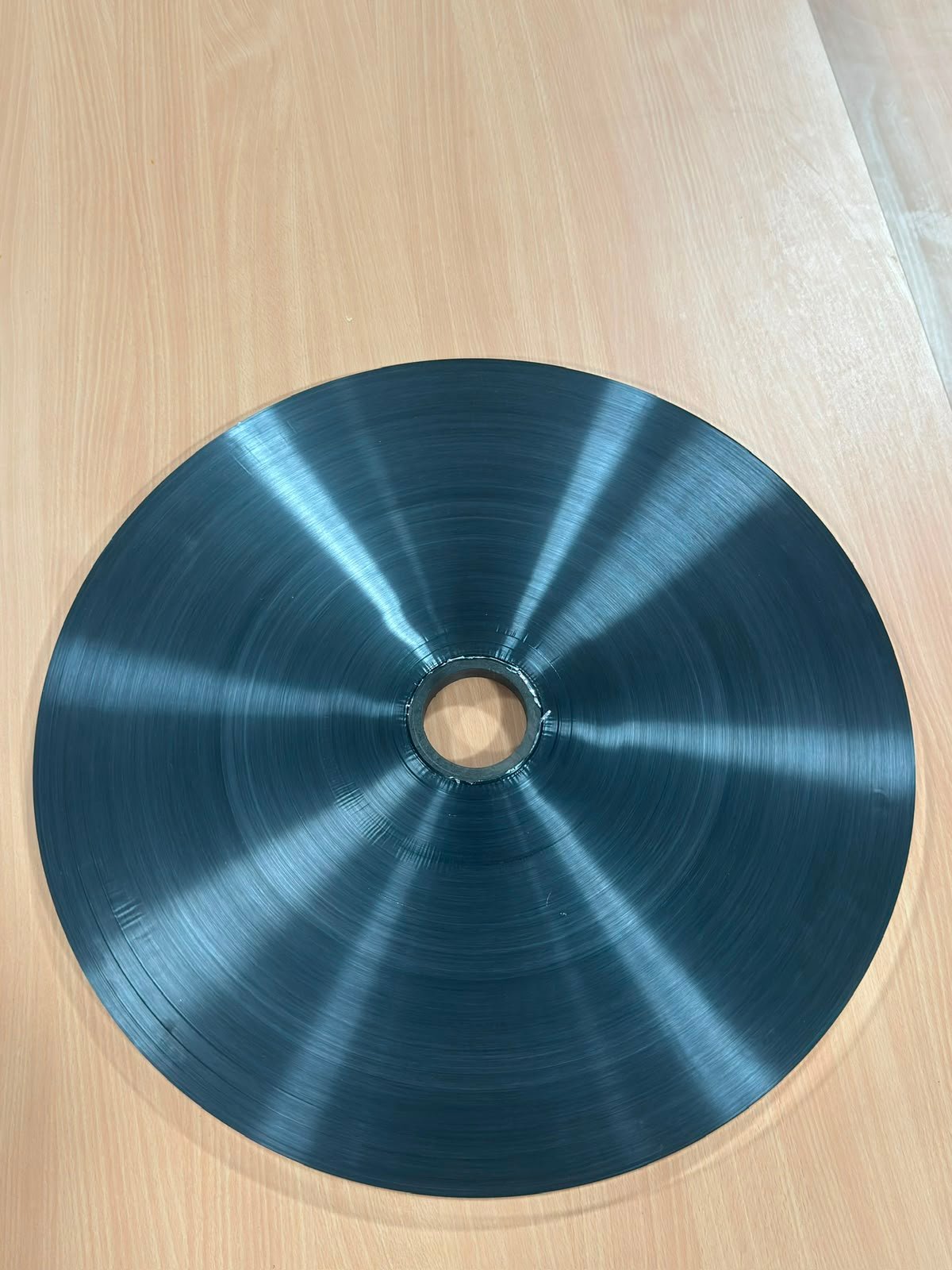

Pancake winding — a flat, large-diameter reel on a 3 inch core.

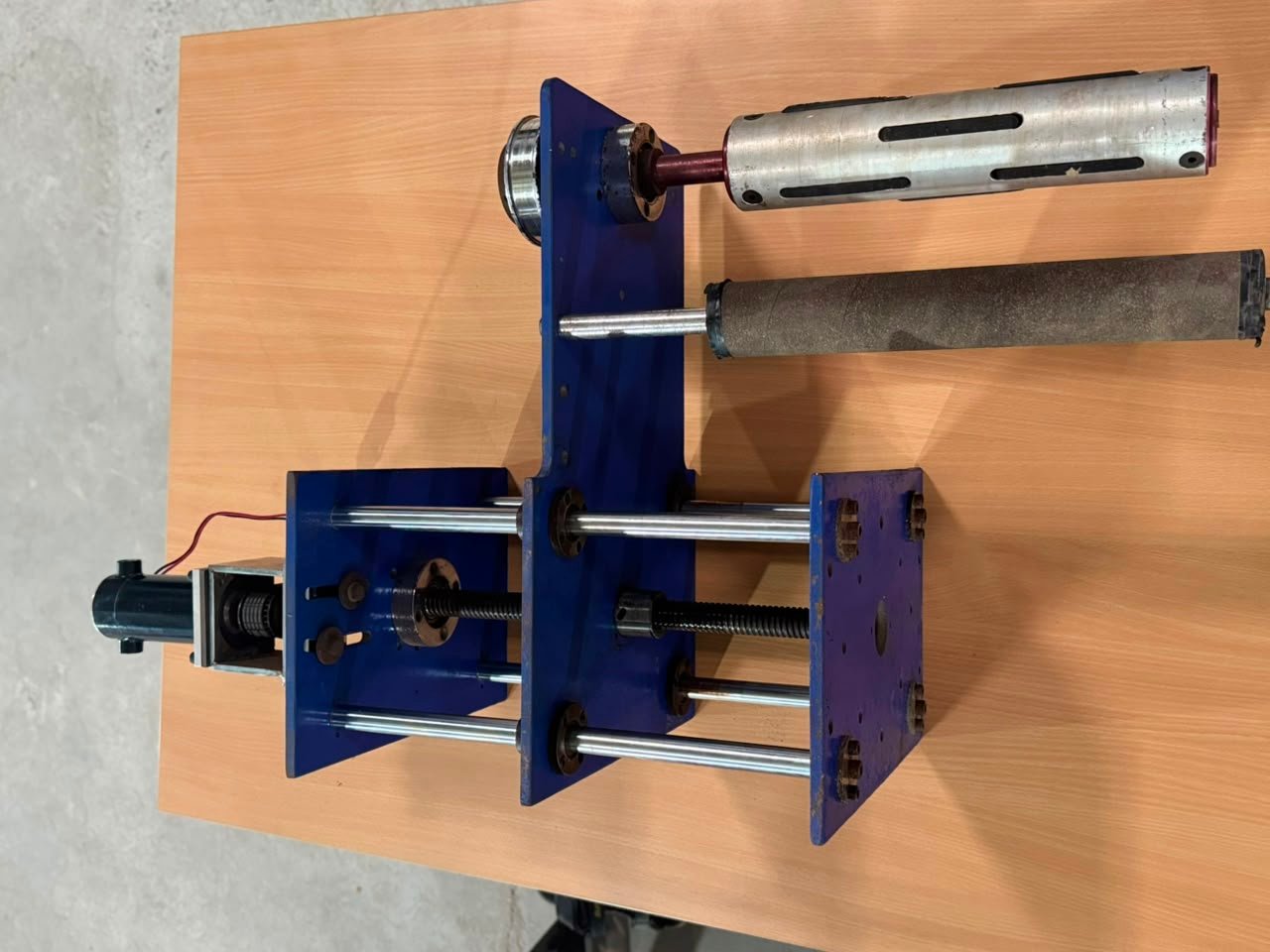

The spool-winding rig, with the edge-guide assembly that holds the reel true.
Technical specifications
Final suitability should be confirmed through technical discussion and application testing.
| Property | Value | Status |
|---|---|---|
| Running length | 24,000 m | Standard |
| Equivalent conventional rolls | 3 × 8,000 m | Standard |
| Changeover reduction | Up to 66% for an equivalent production length | Standard |
| Winding | Spool winding, pancake winding | Standard |
| Width | 19 – 55 mm standard, other widths custom | Custom |
| Property | Value | Status |
|---|---|---|
| Base film | Metallised polyester or plain polyester | Standard |
| Thickness | 12, 19 or 23 micronOther gauges confirmed against the construction. | Standard |
| Core size and outer diameter | Confirmed against your unwindThe spool carries three times the length, so diameter and weight are checked before supply. | On enquiry |
| Release value | Developed against your adhesive system | Custom |
How to read these values
- Standard
- Supplied as standard for this product.
- Available
- Available as an option on applicable constructions.
- Custom
- Made to your specification.
- On enquiry
- Confirmed against your application rather than published as a universal figure.
Documents and downloads
Frequently asked
Anything not covered here, ask the team directly — application questions are usually faster to answer than to document.
Ask a technical questionHow is the 66% figure calculated?
It compares changeover count for an equivalent production length. Running 24,000 m from conventional 8,000 m rolls requires three mounts; the same length from one PROASP spool requires one. That is two changeovers removed out of three, or up to 66% fewer. It is stated as a changeover reduction, not as a guaranteed financial saving — the value of a changeover depends on your line.
Will the spool format run on our existing unwind?
That is confirmed before supply. The spool carries three times the length, which affects diameter, weight, tension control and handling. Share your unwind type and maximum roll capacity and the team will confirm whether the format suits your line as it stands or needs adjustment.
What is the difference between spool winding and pancake winding?
Both are extended-length formats. Spool winding puts the film on a flanged spool, which suits narrow widths and high-speed unwinds. Pancake winding builds a flat, large-diameter reel on a plain core. Which one suits you depends on your unwind and how the reel is handled at the machine, so tell the team what you run.
Can we trial it before committing?
Yes. A sample spool is run on your line before the format moves into regular supply, so unwind behaviour and release performance are verified on your equipment first.
Related solutions
Silicone-Coated Release Films
MET Metallised Release Film
Metallised polyester with a uniform silicone release face, slit to width and wound to 8,000 m.
View solutionSilicone-Coated Release Films
PET Polyester Release Film
Consistent release and dimensional stability across labels, tapes and peel-and-stick constructions.
View solutionCustom Development
Custom and OEM Development
Define the substrate, release level, dimensions, security response and finished format around your application.
View solution
Discuss Spool-Wound Release Film for your application
Send your substrate, dimensions, operating conditions and estimated volume. The enquiry form arrives pre-filled with this product so you only need to describe the application.
