Product Sheet
MET Metallised Release Film — Product Sheet
Construction, roll format and application detail for the silicone-coated metallised release film.
Available on request
Silicone-Coated Release Films
Silicone-Coated Metallised Release Film (MET)
Metallised polyester release film with a uniform silicone coating, supplied in spool and pancake formats for dependable release at converting speed.
At a glance
- Base film
- Metallised polyester
- Release surface
- Silicone-coated
- Finish
- Glossy metallised
- Thickness
- 12, 19 or 23 micron
- Standard roll length
- 8,000 m
Overview
MET is a metallised polyester release film with a silicone-coated release face and a bright, glossy metallised surface. It is coated in house, so laydown and release level sit under direct process control rather than arriving as supplied.
The metallised base gives the film a distinct visual identity in the finished construction, which is useful where the liner needs to be immediately recognisable on the line or where the appearance of the release face matters to the end product.
Standard rolls run to 8,000 m on a 3 inch core at roughly 14 inch outer diameter, in widths from 19 mm to 55 mm. Where a line is losing time to roll changes, the same construction is available in the 24,000 m spool-wound format.
Performance benefits
Uniform silicone coating
Coating is applied in house to a controlled laydown, supporting consistent release behaviour across the web and between rolls.
Slit to the width you run
Standard widths from 19 mm to 55 mm, with other widths slit to your requirement before dispatch.
Built for high-speed converting
The metallised polyester base holds dimensional stability through lamination, printing and slitting at production speed.
Glossy, visually distinct release face
A clean metallised appearance that reads clearly on the line and in the finished construction.
Spool or pancake winding
Wound to the format your unwind is built for, including the extended 24,000 m spool format.
Thin gauges available
12, 19 and 23 micron, so the liner adds as little bulk to the finished construction as the application allows.
Available configurations
- Base film
- Metallised polyester (MET PET)
- Finish
- Glossy metallised
- Release surface
- Silicone-coated
- Winding
- Spool winding
- Pancake winding
- Width
- 19 mm
- 24 mm
- 30 mm
- 35 mm
- 40 mm
- 45 mm
- 50 mm
- 55 mm
- Or to your requirement
- Thickness
- 12 micron
- 19 micron
- 23 micron
Applications
- Tamper-evident tape and security-bag constructions
- Adhesive tapes
- Pressure-sensitive labels
- Protective films
- Flexible packaging
How it works
01
Metallised polyester base
A metallised PET film provides the dimensional stability and the surface the release coating is applied to.
02
Silicone coating
The release face is silicone-coated in house to a uniform laydown.
03
Winding to length
Rolls are wound to 8,000 m on a 3 inch core at approximately 14 inch outer diameter, in spool or pancake format.
04
Slitting to width
Width is slit to your requirement before dispatch, with edge guiding held through the wind.
The material in application
Production and application photography of this construction. Nothing here is a mock-up.

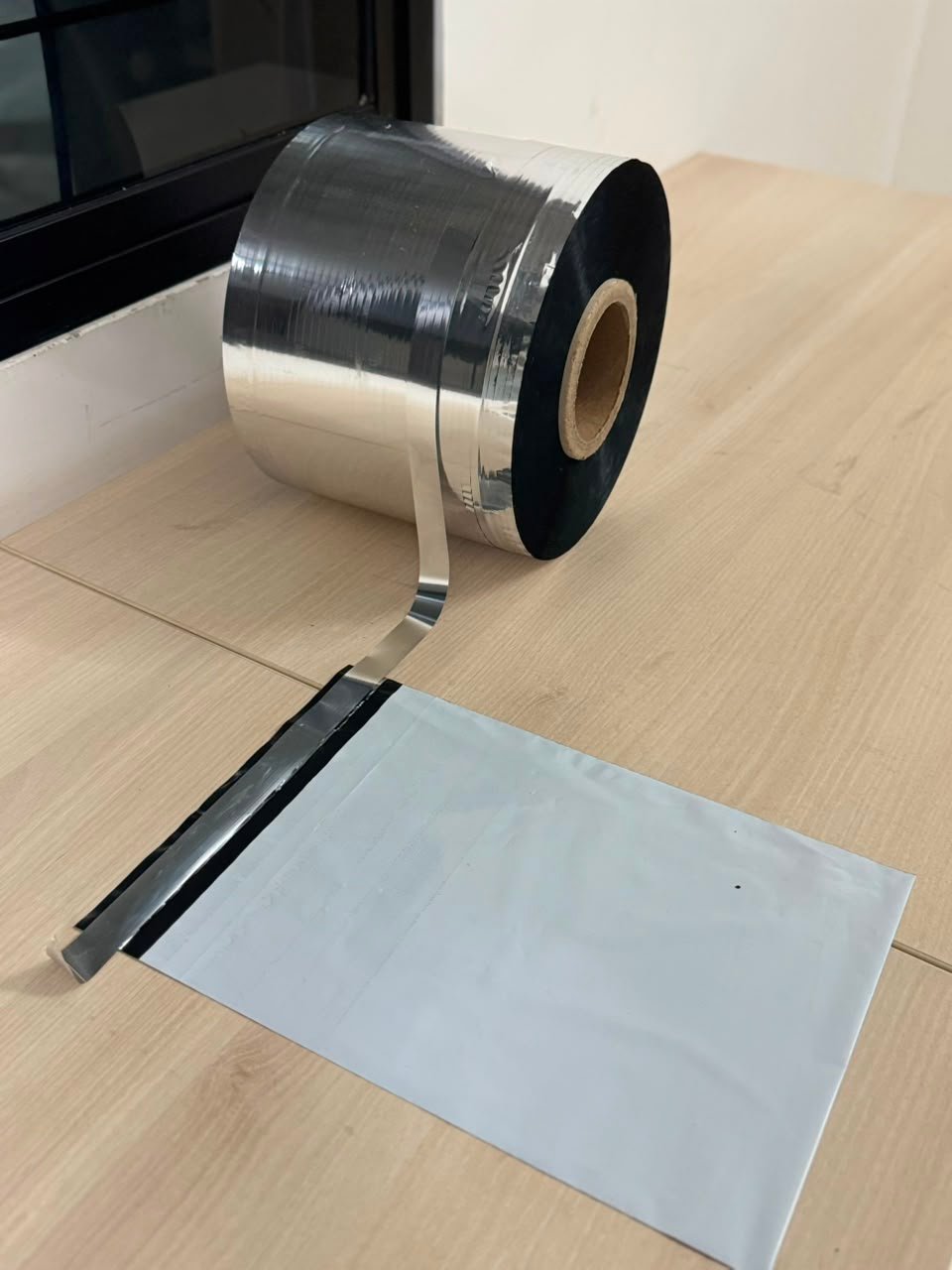

The release face unwinding onto a mailer seal at application.

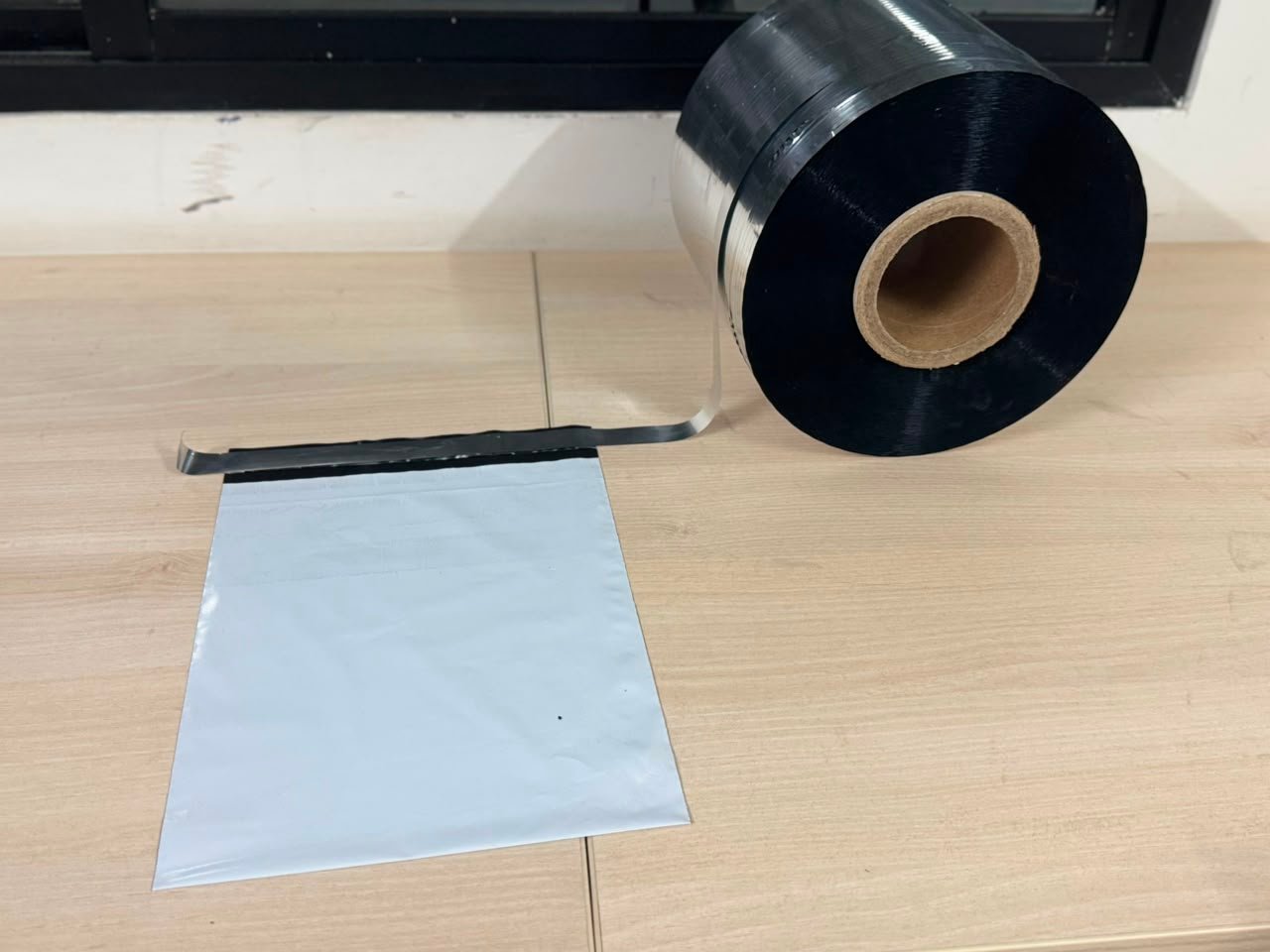

Applied as the liner over a courier-mailer closure.
Technical specifications
Final suitability should be confirmed through technical discussion and application testing.
| Property | Value | Status |
|---|---|---|
| Base film | Metallised polyester | Standard |
| Release surface | Silicone-coated | Standard |
| Finish | Glossy metallised | Standard |
| Thickness | 12, 19 or 23 micron | Standard |
| Property | Value | Status |
|---|---|---|
| Standard roll length | 8,000 mAlso supplied in the 24,000 m spool-wound format. | Standard |
| Core inner diameter | 3 inch | Standard |
| Outer diameter | Approximately 14 inch | Standard |
| Width | 19, 24, 30, 35, 40, 45, 50, 55 mm | Standard |
| Other widths | Slit to your requirement | Custom |
| Winding | Spool winding, pancake winding | Standard |
| Property | Value | Status |
|---|---|---|
| Release value | Confirmed against your adhesive systemEstablished through sampling. | On enquiry |
How to read these values
- Standard
- Supplied as standard for this product.
- Available
- Available as an option on applicable constructions.
- Custom
- Made to your specification.
- On enquiry
- Confirmed against your application rather than published as a universal figure.
Compliance notes
- Compliance availability depends on product grade and application. Documentation is available on request.
Documents and downloads
Frequently asked
Anything not covered here, ask the team directly — application questions are usually faster to answer than to document.
Ask a technical questionWhat is the difference between MET and PET release film?
The base film. MET uses a metallised polyester base and reads as a bright silver surface; PET uses plain polyester and can be supplied clear, matte, coloured or low-haze. The silicone release face, the roll formats and the width range are the same on both.
Can you supply MET at our slit width?
Yes. Standard widths run from 19 mm to 55 mm and anything outside that is slit to your requirement. Share the width and the unwind equipment you run and the team will confirm the format.
What release value does MET run at?
Release value is confirmed against the adhesive system you are using rather than quoted as a single universal figure. Send the adhesive type and target peel range and a sample will be developed to work against.
Is MET the same as the 24,000 m spool product?
It is the same construction in a different format. MET is supplied as standard on 8,000 m rolls. The spool-wound format takes that construction to 24,000 m on one spool, which is where the changeover reduction comes from.
Related solutions
Silicone-Coated Release Films
Spool-Wound Release Film
Three times the running length of a conventional 8,000 m roll, with up to 66% fewer changeovers.
View solutionSilicone-Coated Release Films
PET Polyester Release Film
Consistent release and dimensional stability across labels, tapes and peel-and-stick constructions.
View solutionCustom Development
Custom and OEM Development
Define the substrate, release level, dimensions, security response and finished format around your application.
View solution
Discuss MET Metallised Release Film for your application
Send your substrate, dimensions, operating conditions and estimated volume. The enquiry form arrives pre-filled with this product so you only need to describe the application.
